WELD-CRAFT BASS BOATS

All Weld-Craft Bass Boats Models come in our V hull with 2 choices of bow designs:  UV (upswept) or V (downswept). Select the Dual Console or Front Flipping Deck option and customize your Body Paint and Carpet Colors.  Our Bass Models are ready for the serious fisherman or the pleasure boater. Weld-Craft Bass Boats come with standard features like our Large Battery Storage Area; 19 gallon Aluminum Fuel Tank; Stowaway Lights; Bilge Pump; Large, Divided, Aerated Rear Livewell; Full Instrumentation; 12/24 volt Electrical Package with Trolling Motor Harness and Receptacle; Front Deck Storage; Cigarette/Mobile Phone Plug; Courtesy Light and a Tinted Windshield.  They also have the option of Bench Seat rather than standard cushioned seats, which come in colors selected to accent your Body Paint and Carpet Color choice.

The V & UV BASS are our standard Bass Boats with a 5 degree V Hull Bottom with either V Bow or UV Bow and 22" Side Height.

The F BASS is our specialty Bass Boats with a Flat Hull Bottom with Square Bow and 22" Side Height.  The Flat Jet Bass is marketed through Cowtown USA, Inc. of Cuba, Missouri as the Legend SS by Weld-Craft.

The 9V BASS is optioned as our standard Bass Boat with a 9 degree V Hull Bottom and 22" Side Height. Click here for more information on the 9VB.

MODEL

LENGTH

BOTTOM

BEAM

SIDE

Shaft

Gauge

Approx. Boat Weight

H.P.

Person Capacity

Weight Capacity

1852  Bass

18'2"

52"

74"

22"

21"

.100

915

115

5

1300

1756  Bass

17''2"

56"

78"

22"

21"

.100

915

115

5

1295

1856  Bass

18''2"

56"

78"

22"

21"

.100

950

140

5

1450

1860  Bass

18''2"

60"

82"

22"

21"

.100

1050

150

6

1470

1960  Bass

19''2"

60"

82"

22"

21"

.100

1100

150

6

1572

2060 Bass 20'4" 60" 82" 22" 21" .100 1150 150 6 1590

2070  Bass

20''4"

70"

92"

22"

21"

.100

1200

150

6

1700

(19' & 20' MODELS can be upgrades to Dual Console & Center Rod Locker Options)

(Click image to enlarge view)

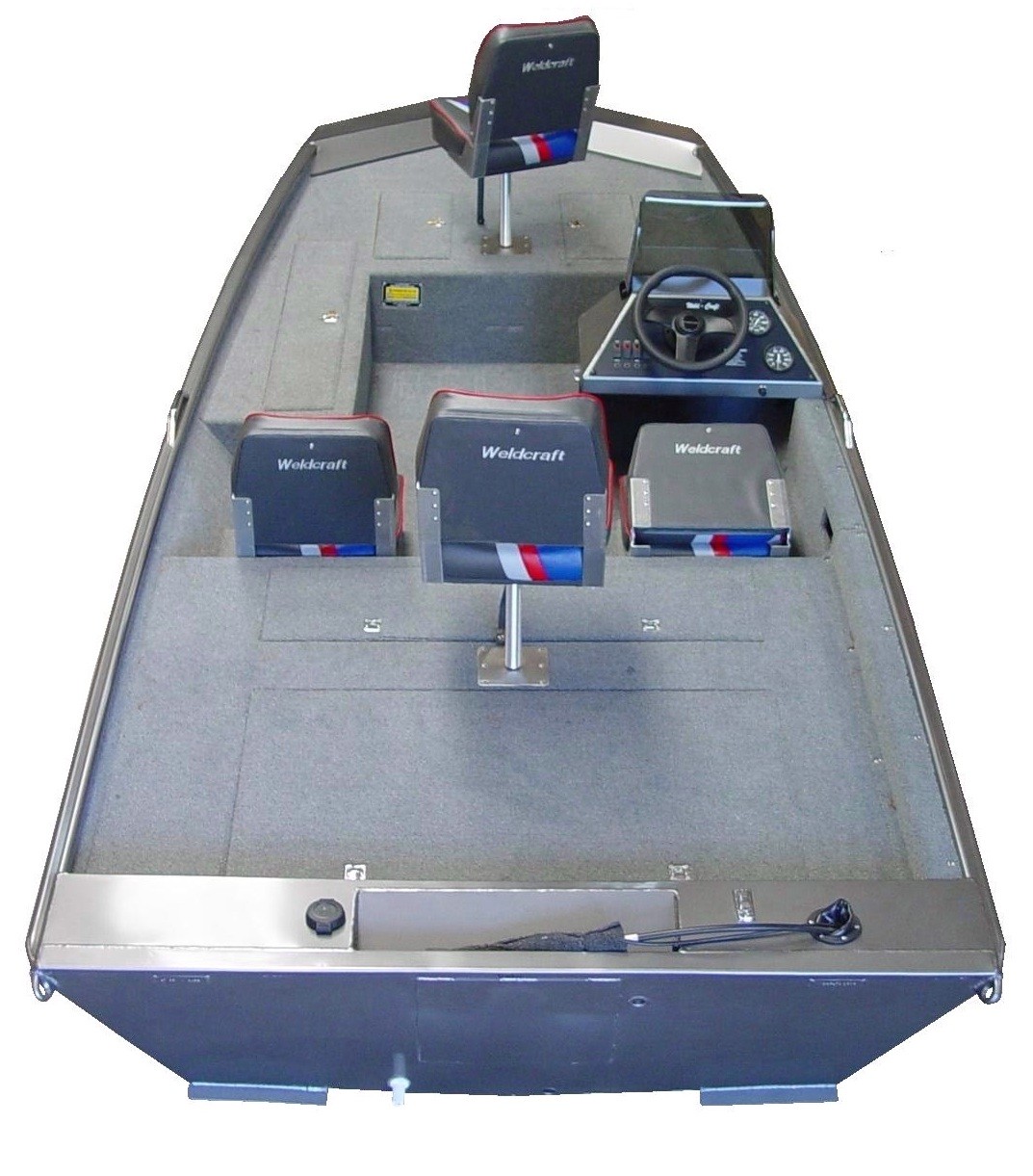

V BASS with

STANDARD FEATURES

Down-Swept V Bow & V Bottom

STANDARD OPTIONS: Long Shaft; Single Console with Gauges & Windshield (Dual Console Option is NOT available); Left Side Rod Box; 4 Cushioned Seats; Front Deck with Pedestal Base & two Storage Compartments; Rear Deck with Pedestal Base; Rear Aerated Livewell & Large Battery Storage Aera; Navigation Lights (shown Metallic Gray Paint / Gray Carpet)

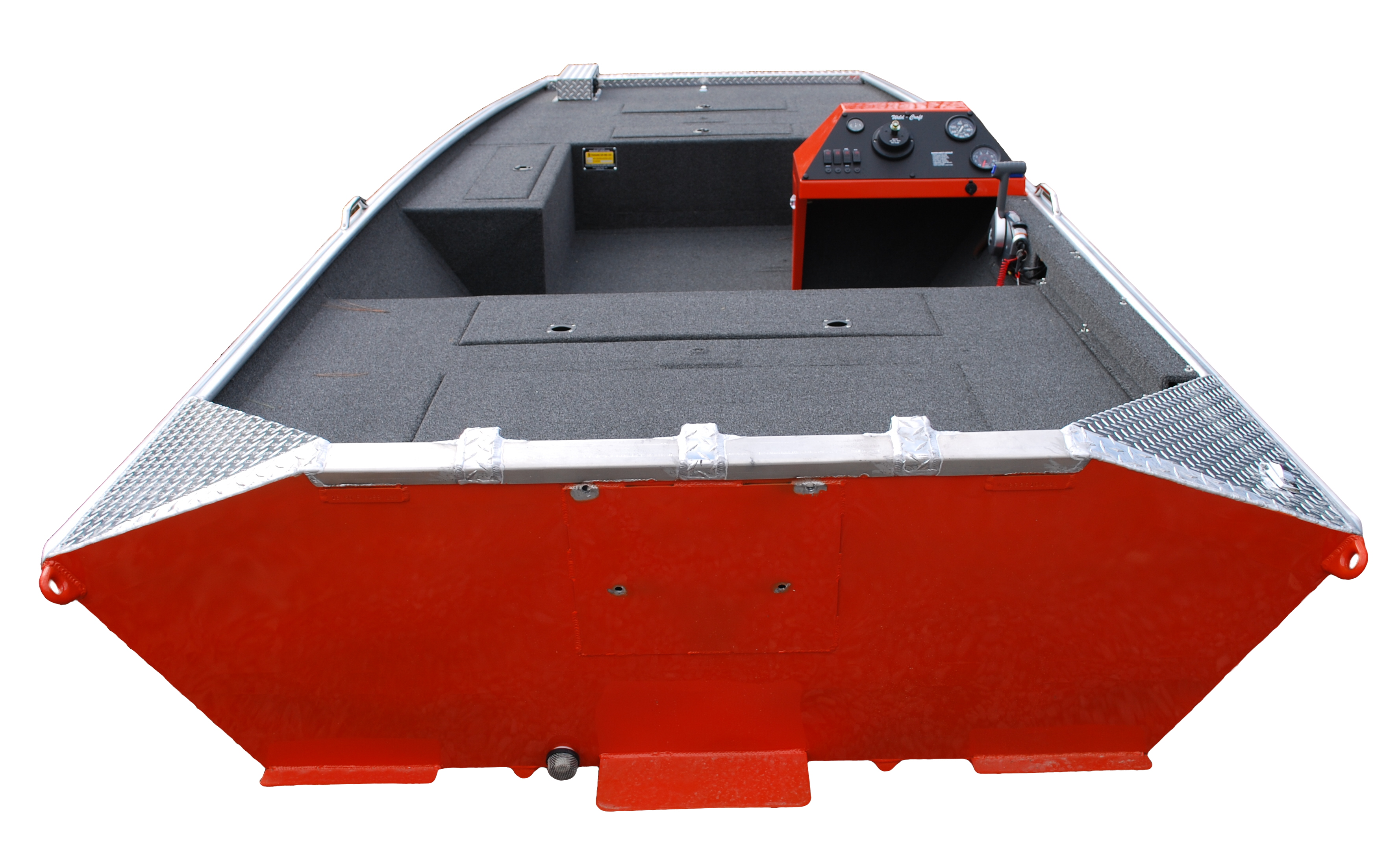

F BASS with

SPECIAL FEATURES

Square Bow & Flat Bottom

OPTIONS SHOWN AS FOLLOWS: Jet Shaft; Left Side Rod Box; Cushioned Seats; two Pedestal Bases in Floor; Front Deck with one Pedestal Base & two Storage Compartments (one can be made into aerated livewell); Rear Deck with Pedestal Base; Rear Aerated Livewell & Large Battery Storage Area; Side Console with Gauges & Windshield (Dual Console Option IS available); Navigation Lights; Tread Plate Package (shown Unpainted / Charcoal Carpet)

**marketed through Cowtown USA, Inc. of Cuba, Missouri as the Legend SS by Weld-Craft**

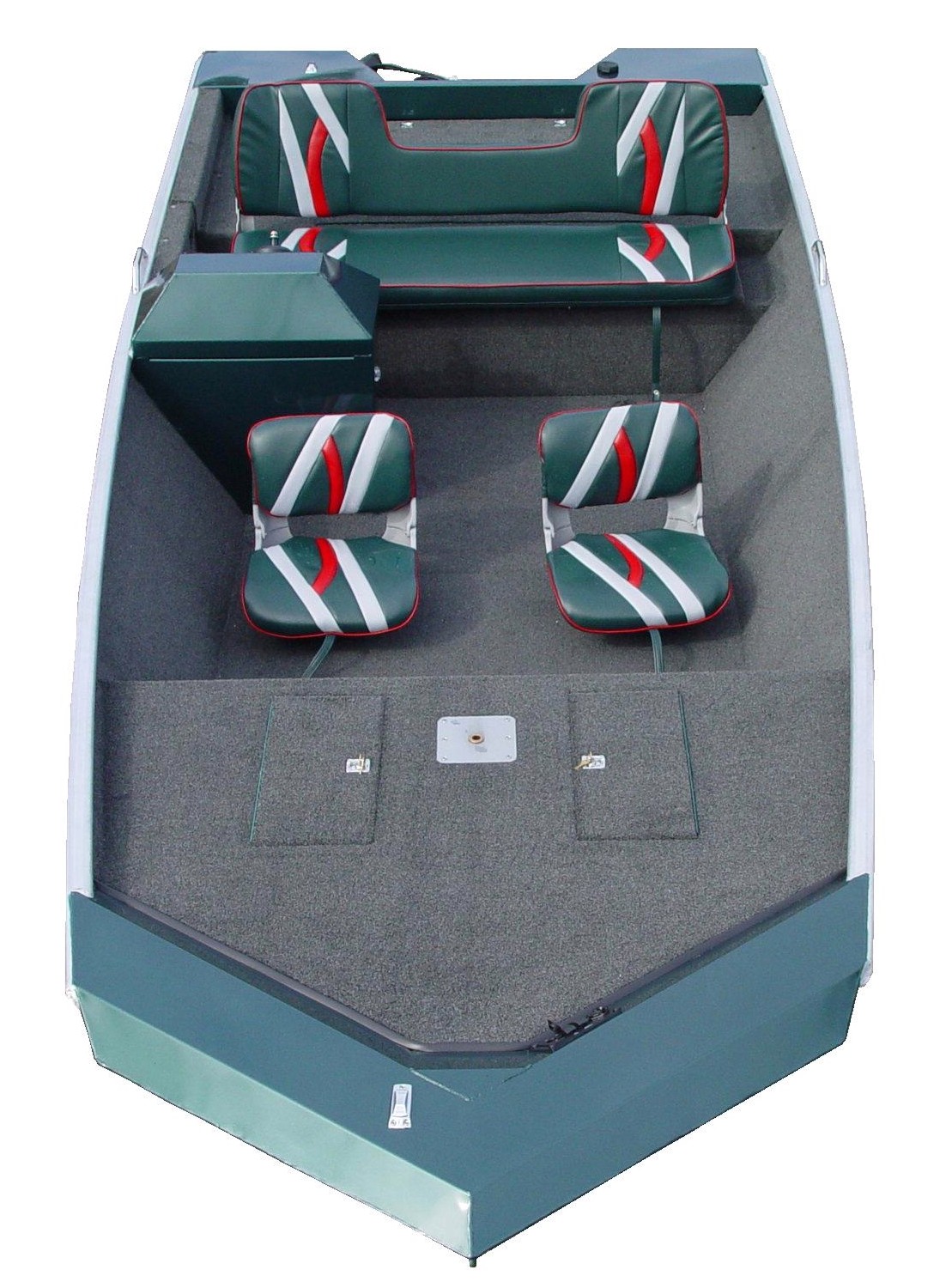

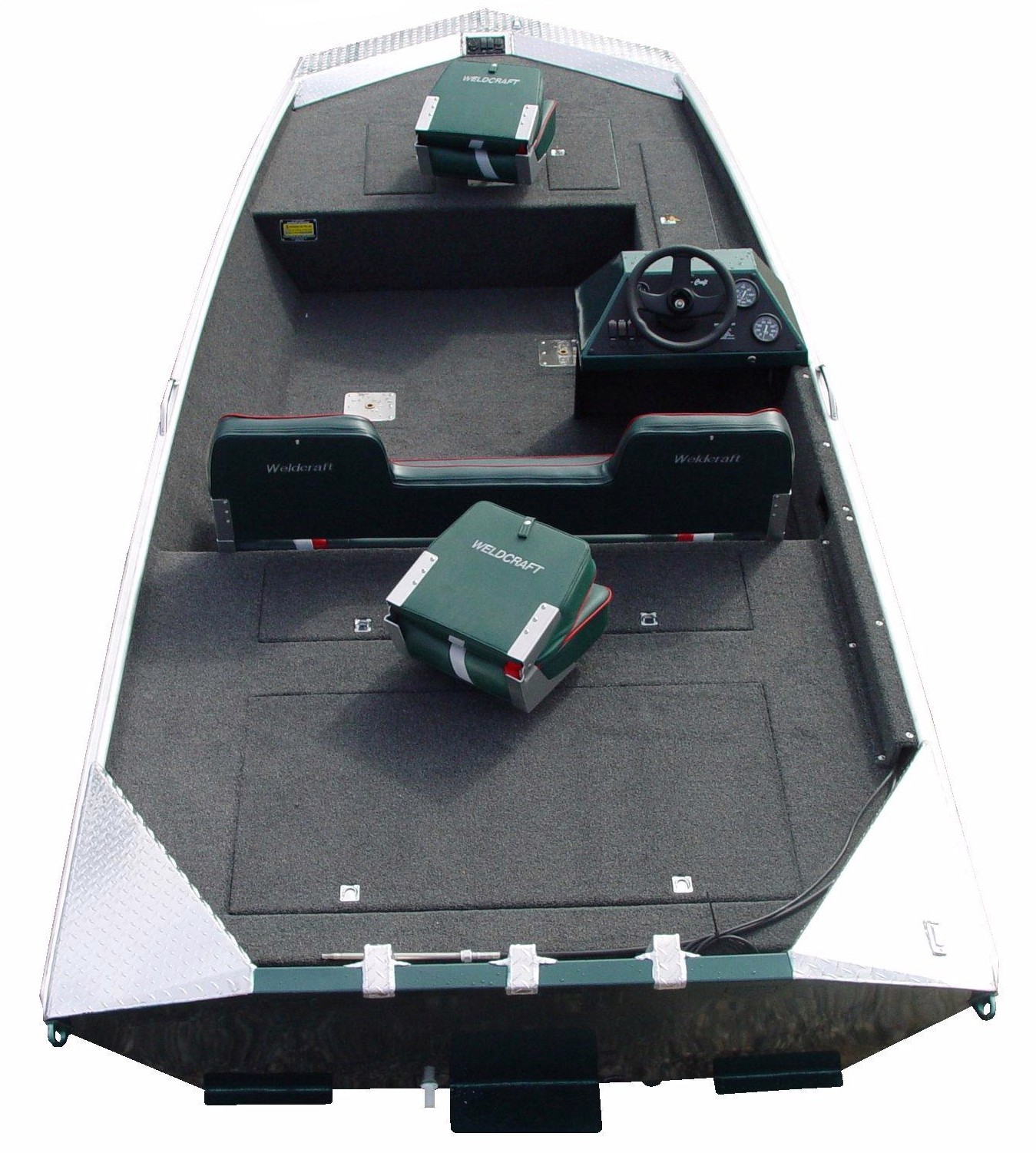

F Bass with

SPECIAL FEATURES

Square Bow & Flat Bottom

OPTIONS SHOWN AS FOLLOWS: 1860 SSF BASS; Jet Shaft; Tread Plate Package; Motor Plate; Rod Box; 5 Deck; Front Livewell; Rod Box Style Console Storage; Wiring to Front for Stereo; two Floor Pedestals; three Knee Braces; 36 gallon Fuel Tank; Cooler in Jumpseat; (shown GTO HUGGER Orange Paint / Charcoal Carpet)

**marketed through Cowtown USA, Inc. of Cuba, Missouri as the Legend SS by Weld-Craft**





Bass Boat Cushioned Seats & Side Graphics are selected to accent your Body Paint and Carpet Color choice.  Together, they really set this package off!
